Microsoft Dynamics 365 as Data Source

Setup AzureAD

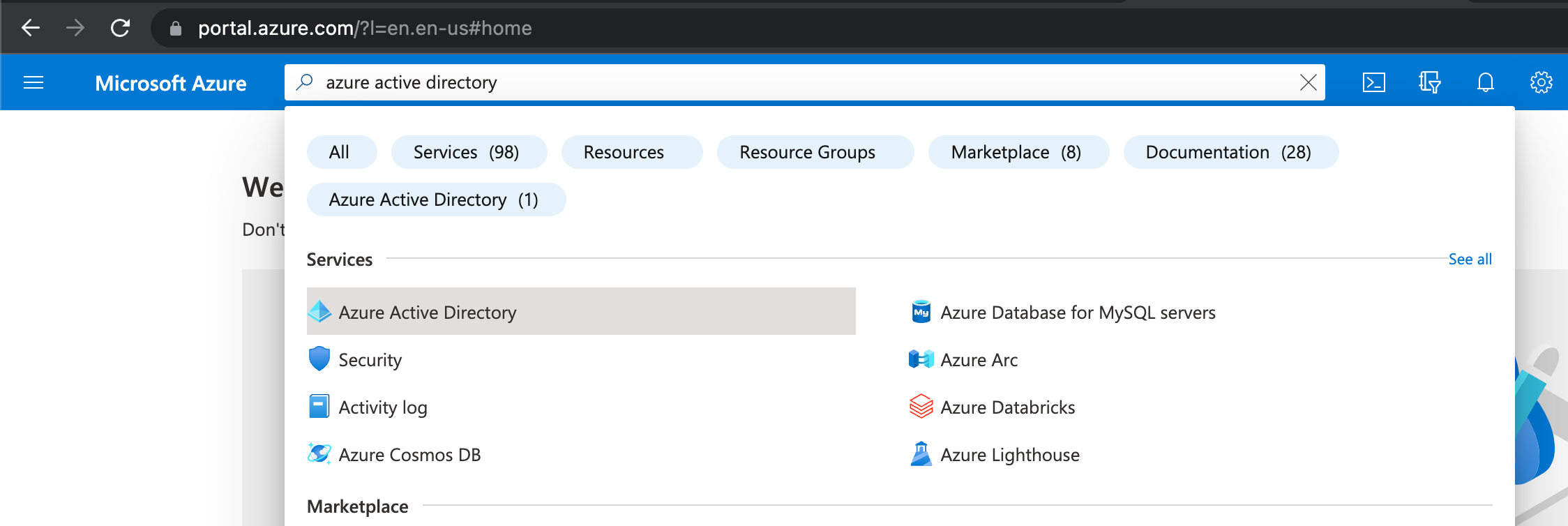

Navigate to “Azure Active Directory”

Add New App Registration

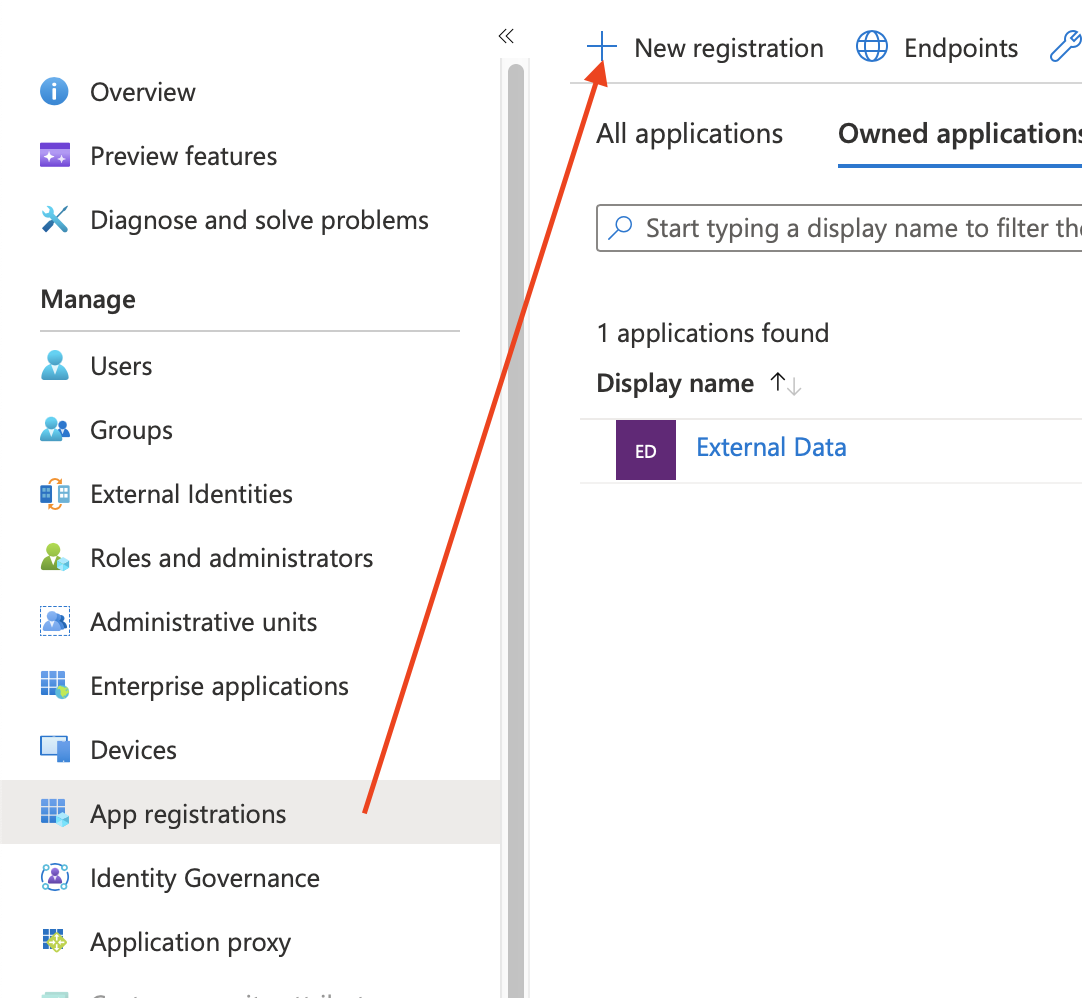

Add a new registration under App registrations > New registration.

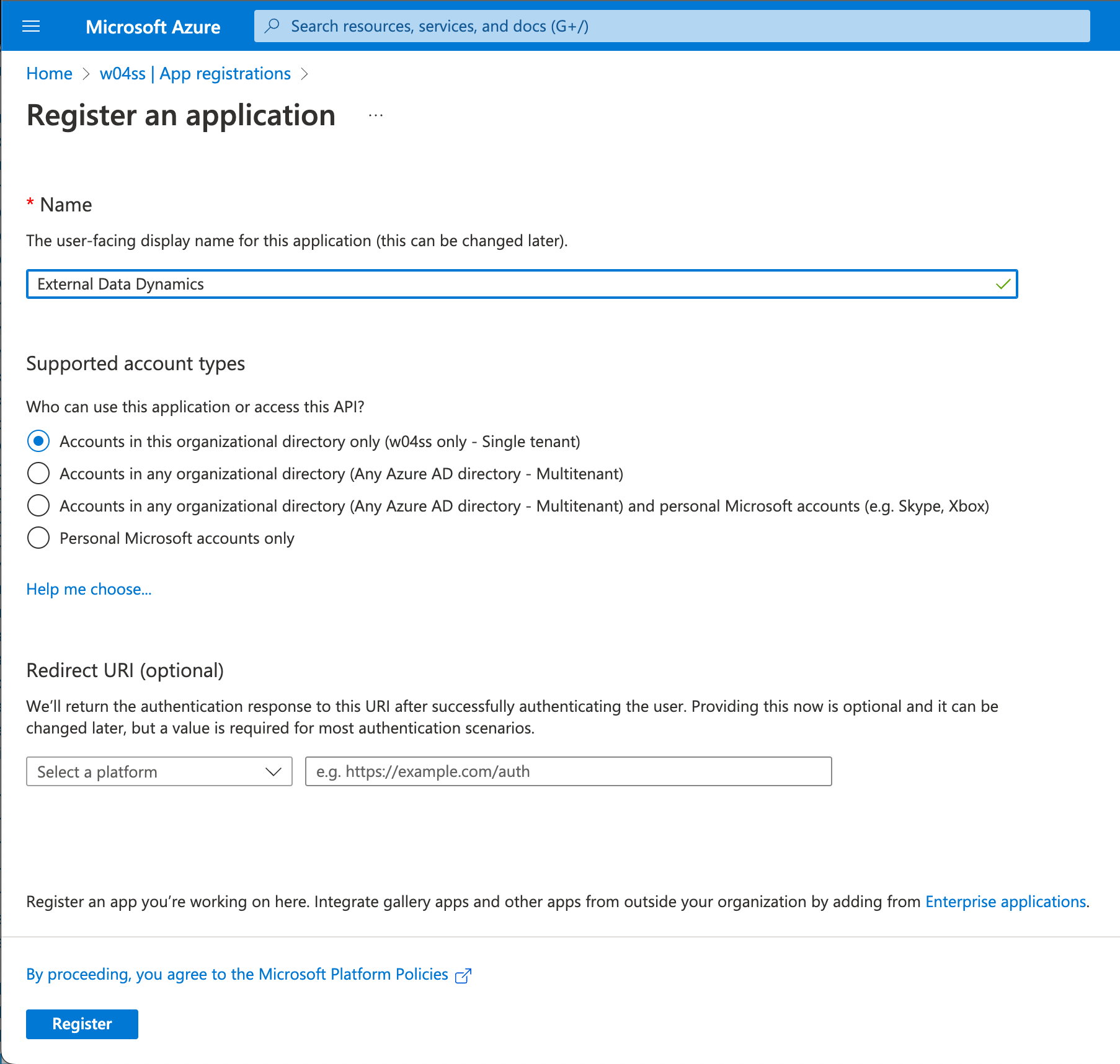

Tipp: When naming the new app, choosing a recognisable name like External Data for Confluence can help you to properly identify the application later.

Certificates & Secret

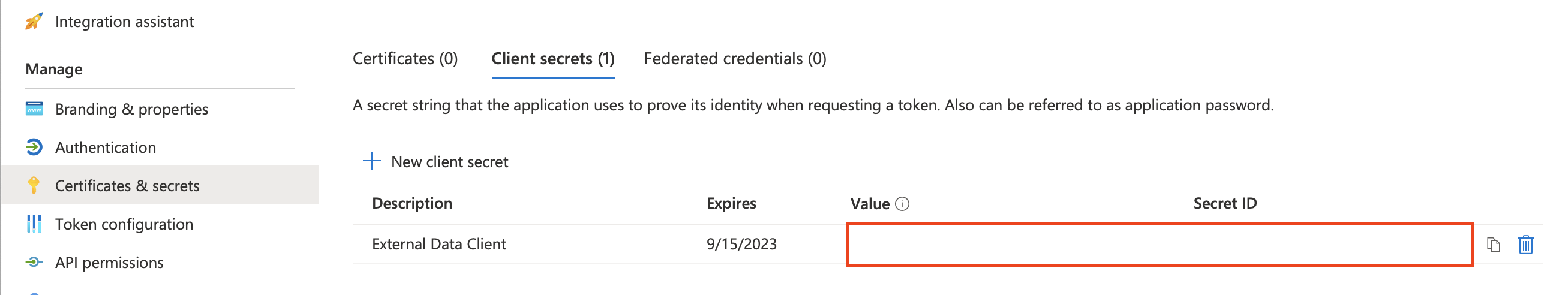

Go to Certificates & secrets > Client secrets > New client secret

Add a meaningful description and set an expiration date. Keep in mind that you’ll have to update the data source once the secret expires.

Important: Please make sure to note down the secret value, which is only visible immediately after creation. You will need this value later when setting up the data source

API Permissions

Go to API permissions > Add a permission

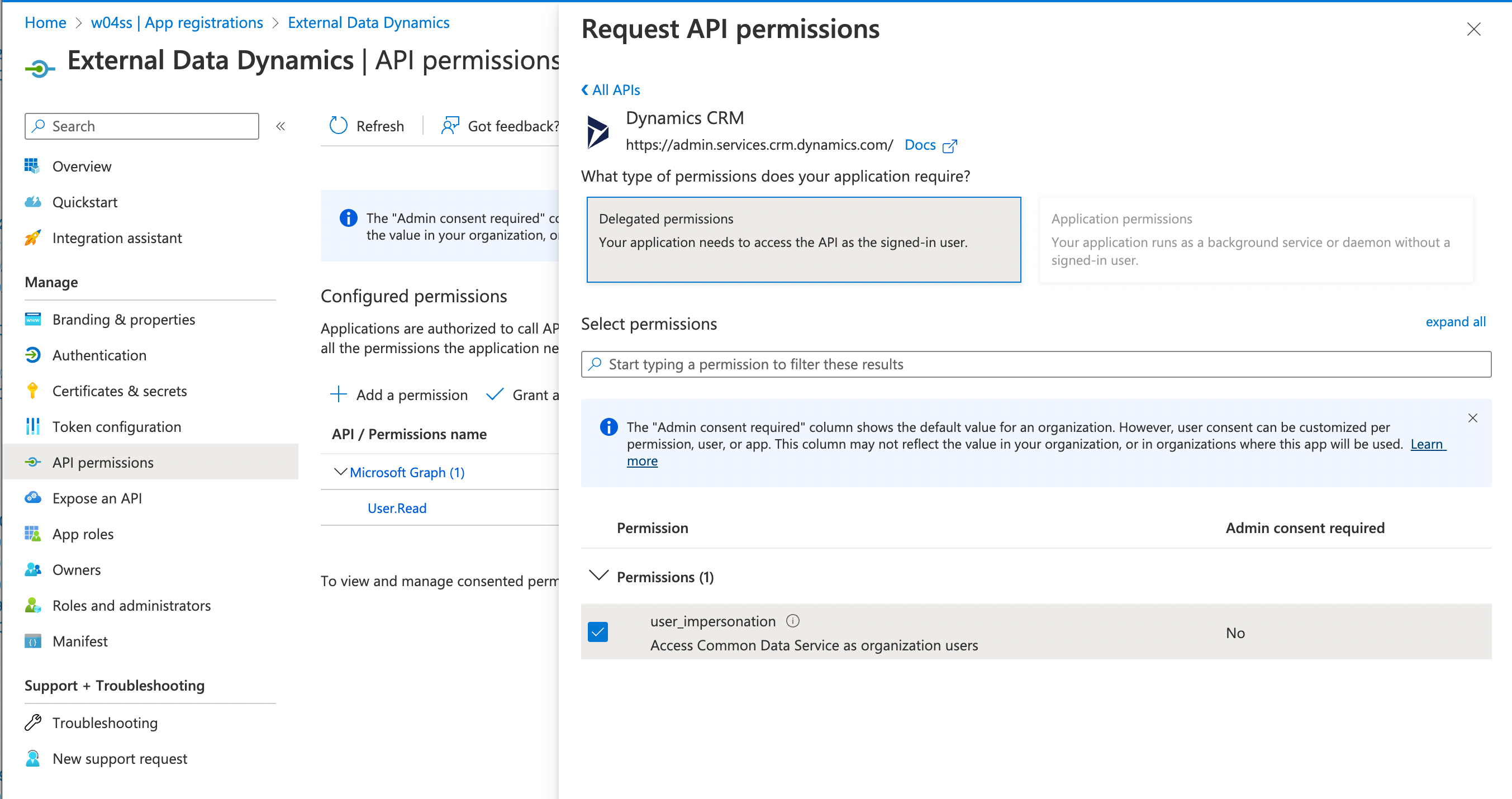

Select Dynamics CRM > Application permissions

Now select the API / Permission user_impersonation.

Collect Endpoint & ClientID

Go to Overview > Endpoints and copy the following endpoint:

CODE

OAuth 2.0 token endpoint (v2)

Go to Overview > Application (client) ID and note the value.

Associate App User / Set Roles in CRM 365 / Dataverse Environment

Sign in to the Power Platform admin center as a System Administrator.

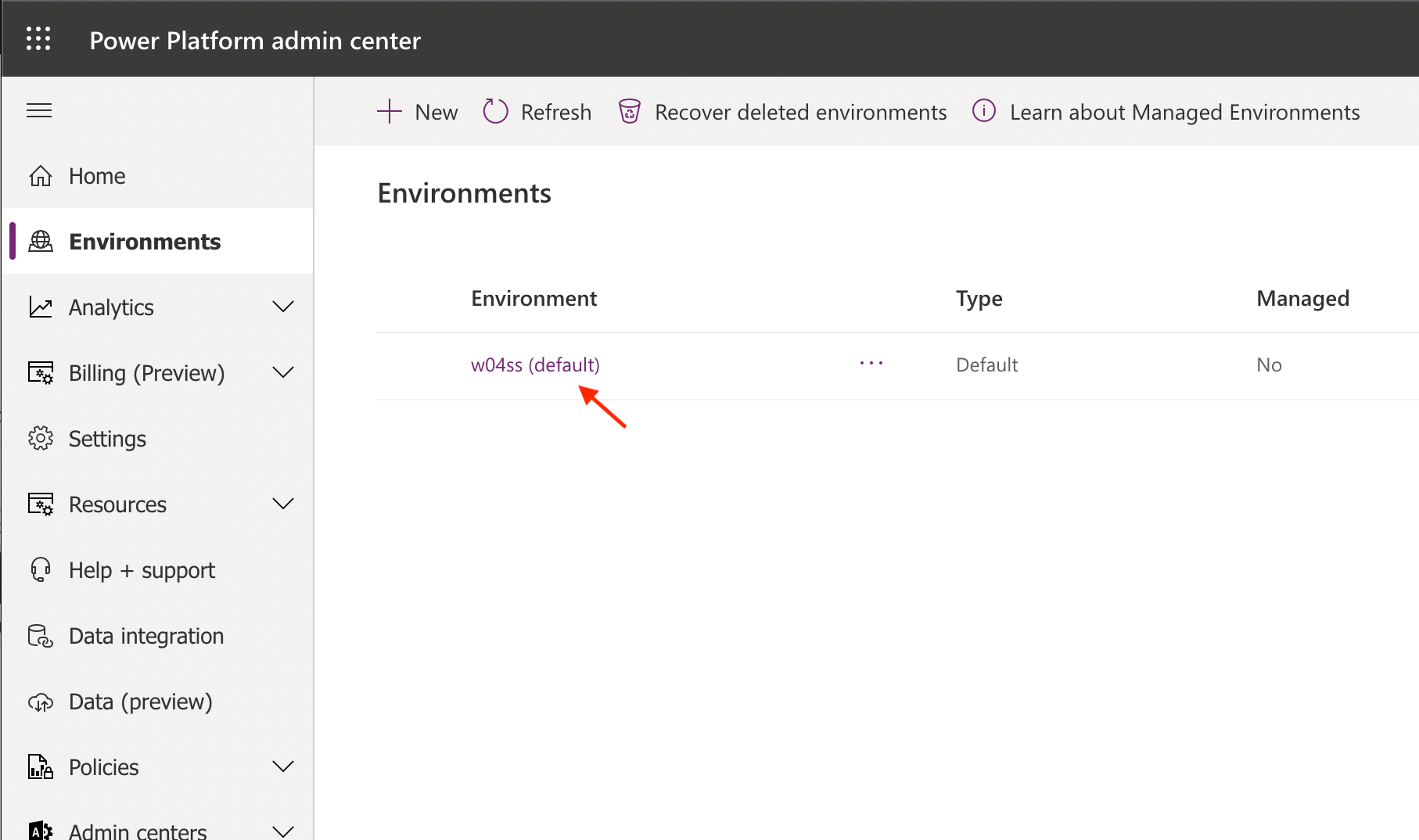

Select your environment, in our sample “w04ss”

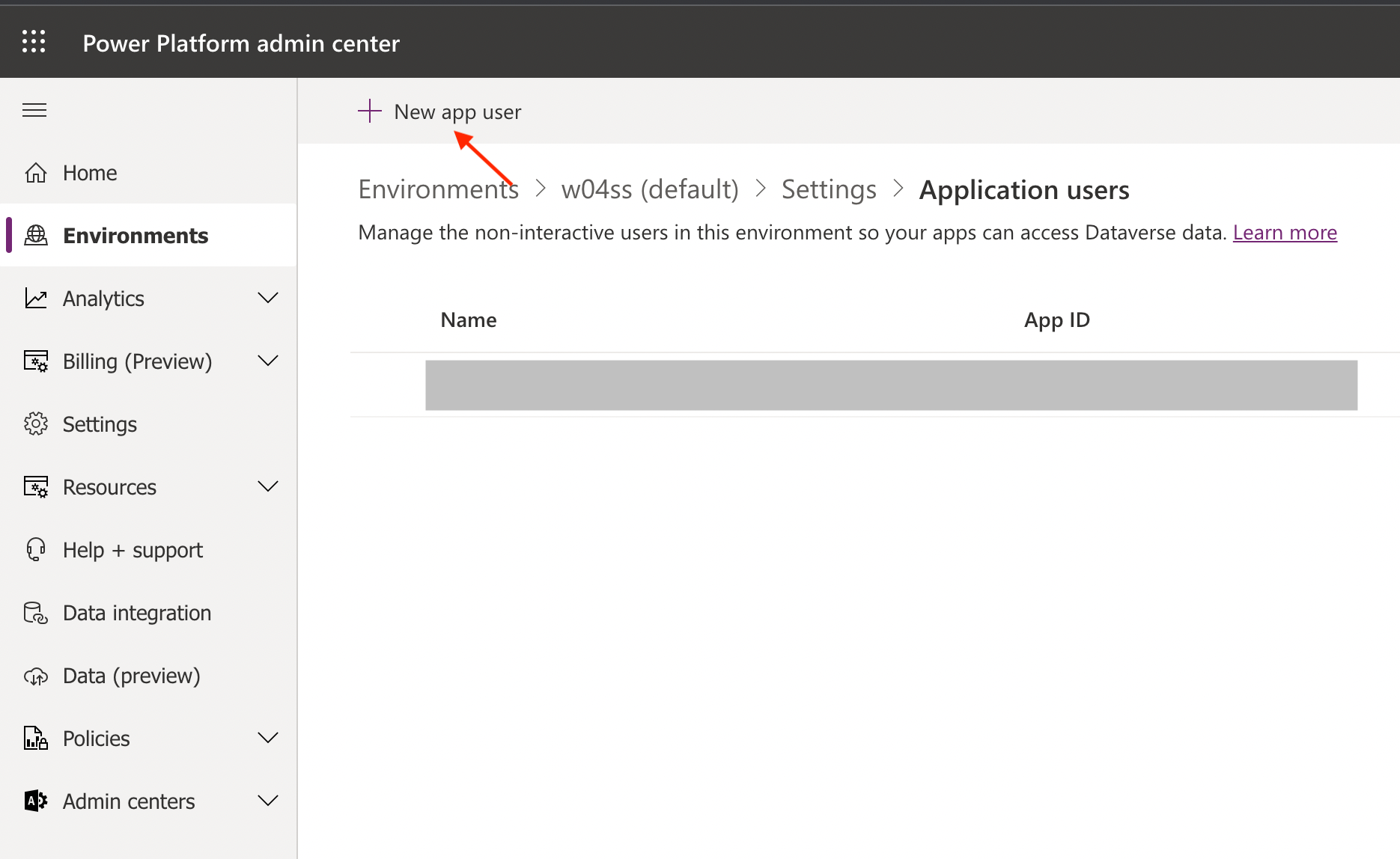

Got to Settings -> User + permissions -> Application users and create a new app user.

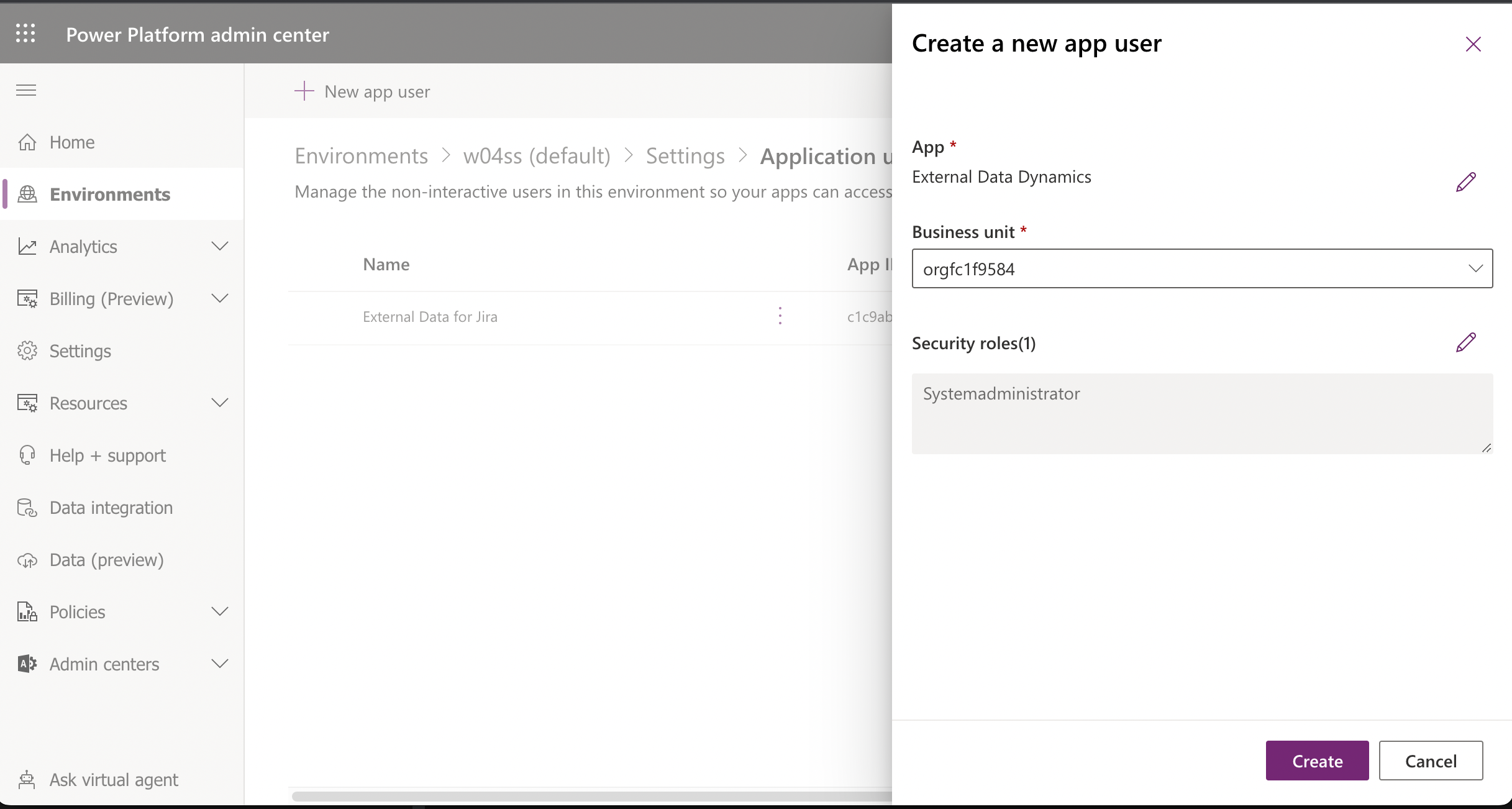

Choose the app we created earlier in Azure AD, your business unit and the right role for this user.
For demo purpose we select Systemadministrator and should not be used in production!

Setup External Data

Create New Data Source

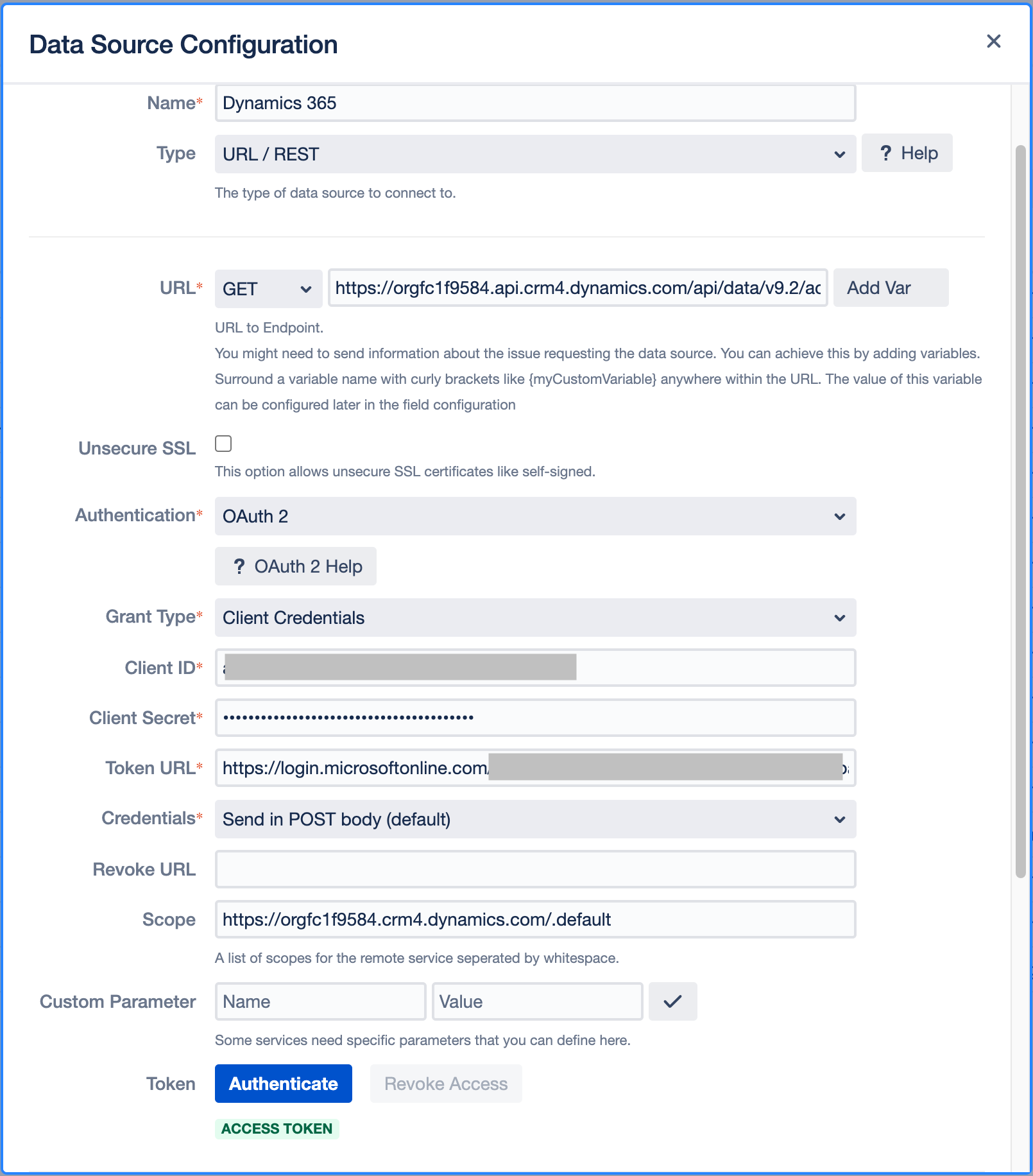

Create a new data source under External Data for Confluence > Data Sources > Add Data Source.

Authentication:

Select Authentication OAuth2 > Grant Type > Client Credentials

Client ID & Client Secret

Enter the Client ID, which you can find at Overview > Application (client) ID

The Client Secret is the secret value created in the Certificates & secrets section. Please insert the noted value here.

Endpoints

Endpoints are service specific URLs for receiving an access token. Since we are using the client credentials flow, we only need the token endpoint.

Token Endpoints:

CODE

Token Url: https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token

Scopes

Scopes define the permission to specific parts of the data. Since we are using the Client Credentials Flow, we simply set the scope to:

CODE

https://{businessunit}.crm4.dynamics.com/.default

Make sure that an administrator grants you the required permissions that you need for setting up the Azure backend configuration.

Authenticate

Click Authenticate to retrieve your access token.

URL

To find the Web API URL for your environment:

Sign into Power Apps, and select your environment from the top-right corner.

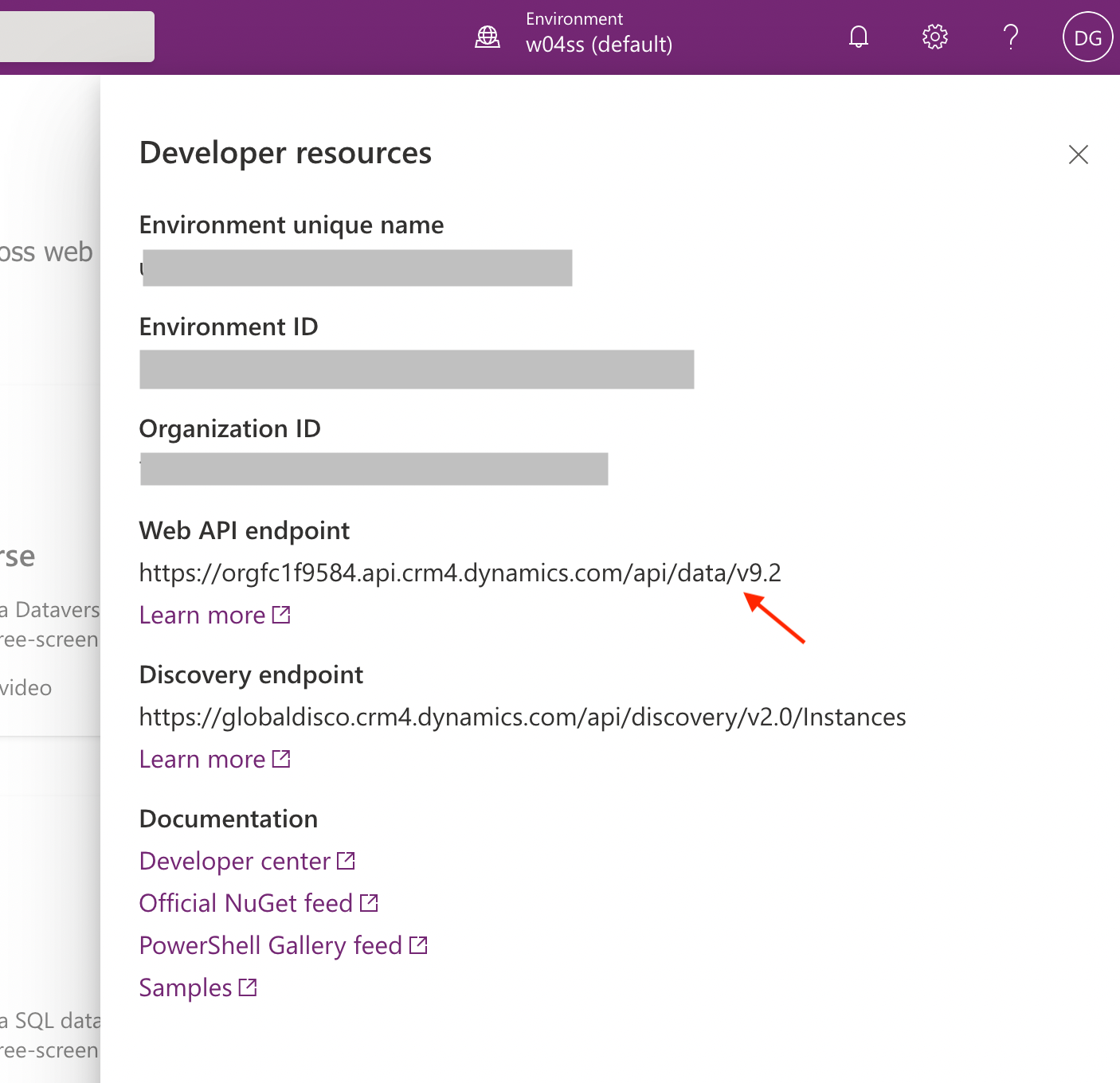

Select the Settings button in the top-right corner, and select Developer resources.

Example query: (Microsoft Documentation)

CODE

https://{Your Web API endpoint}/accounts?$select=name

In our example:

https://orgfc1f9584.api.crm4.dynamics.com/api/data/v9.2/accounts?$select=name

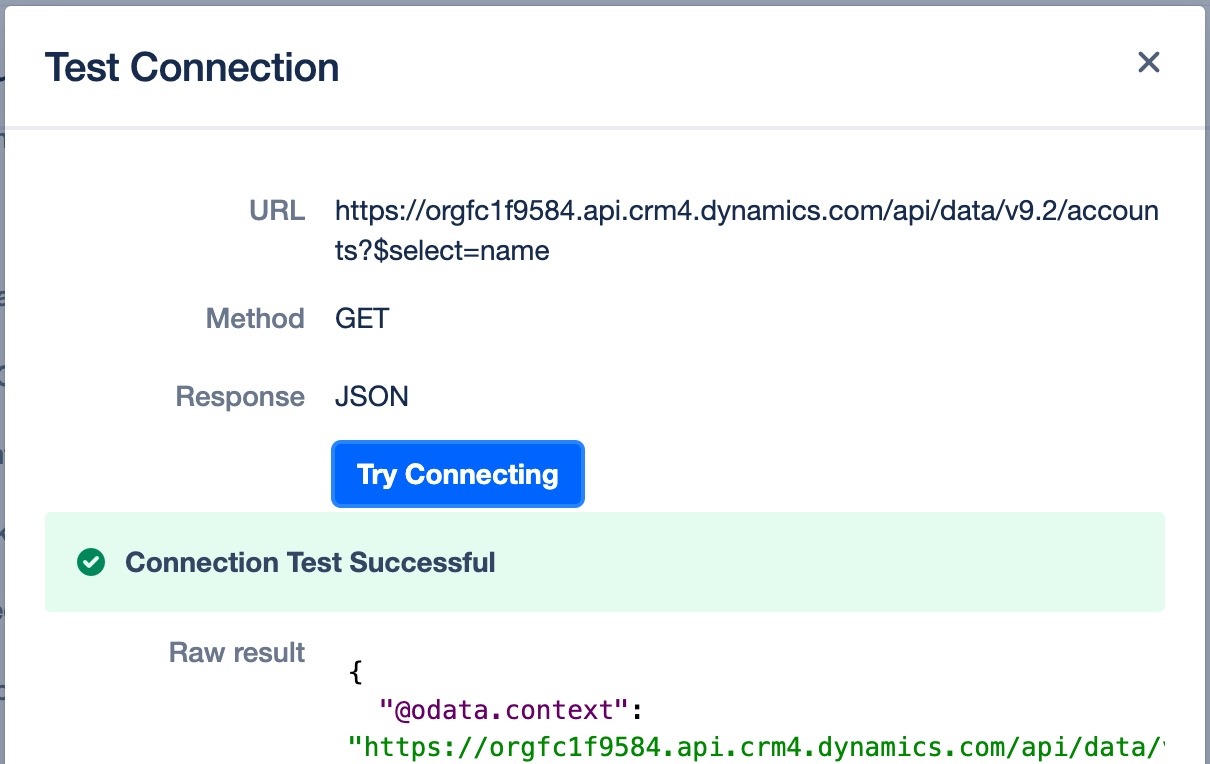

Result:

Save and test the data source to ensure that everything works as intended.
