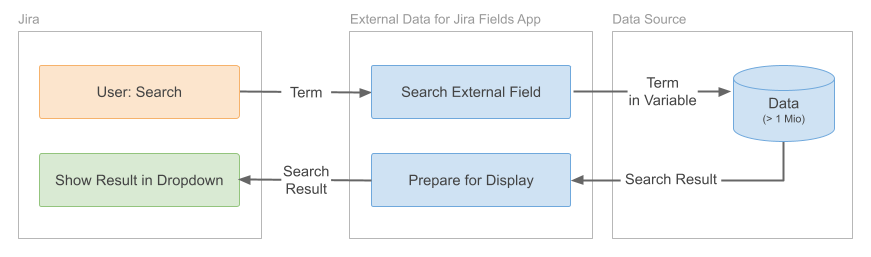

This field type will allow you to use an external search endpoint to perform a search. You can customize how the search result will be presented to the user and which value will be getting written. In most cases, you need a data source with a variabel for the user input / search term. The biggest advantage of this search option is that you’re working with a search result instead of a complete set of potential values.

Data Source Setup

First, you need to configure a data source for your external search.

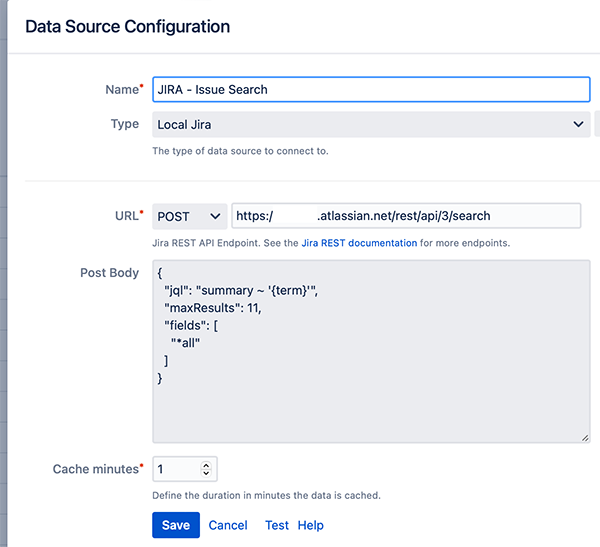

Example: Let’s assume you want to search the summary of your Local Jira issues with {term} as your input variable. The data source configuration would then look like this:

Creating Search Field

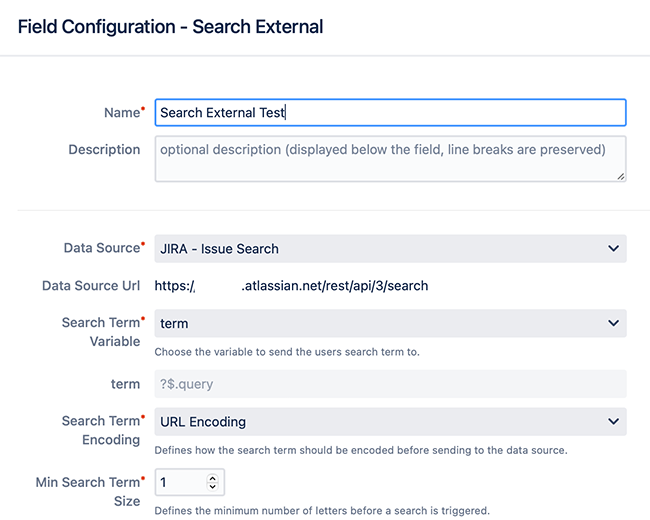

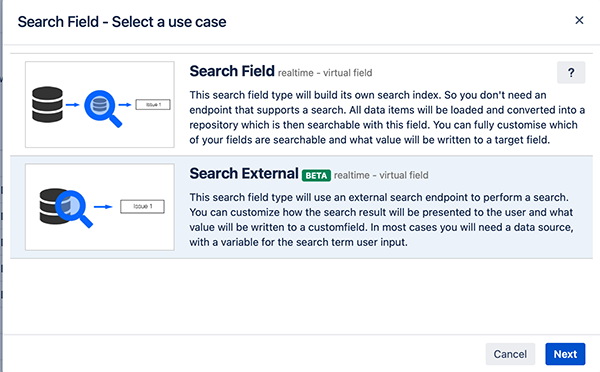

The next step is to create a corresponding Search Field. Select Search > Search External as a use case type.

Variable Usage

Select the data source which you’ve configured in step one and select term as Search Term Variable in the dropdown menu. This will automatically prepare the variable for the user input.

Search Term Encoding

Depending on how you send the search term to your data source encoding might be necessary. You can decide between URL Encdoing which is optimised for usage within an URL or JSON Encoded which is optimised to work within a JSON POST.

Min Query Size

With this value you can customize how many characters a user must type before the search query will be triggered. Zero will trigger a search immediately.


  "startAt": 0,
  "maxResults": 10,
  "total": 2,
  "issues": [
      "id": "10170",
      "key": "THEP-58",
      "fields": {
        "summary": "Issue 1",
      "id": "10171",
      "key": "THEP-59",
      "fields": {
        "summary": "Issue 2",

Context Filter (Optional)

Context Filter allows you to filter the search result based on issue values (optional). You can define dependencies of the search on other fields (nesting) here.

Examples and details about Context Filter can be found in the dedicated section of the documentation.

Select Result

Add the JSON path including the name of your data list here. Please make sure to not just select a single value.



ID Field

ID is the unique identifier that identifies an item within your data set (must be a unique number or string).

This field is used to identify a selected value later. You can use the same JSON path in the value field and the result view field.



Result View Field

Define how the drowdown list is being rendered here.


Value Field

Define JSON path(s) to values in your data list that you want to be written to the target custom field once the user selects them.



This will write Issue 1 into the target custom field

Key:{$.key} summary:{$.feilds.summary}

This will write Key:THEP-58 summary:Issue 1 into the target custom field

Value Label (Optional)

Define JSON path(s) to the values in your data source that are supposed to be displayed as selected values later on. (Is the same as Value Field if left empty)


{$.key}: {$.feilds.summary}

Result will be THEP-58: Issue 1

Enable Multi-select

This options allows you to select more than one value. Values can be seperated either by ; or by {break}.


A selection of multiple values with the separator ; would look like this:


By using Text Field (multi-line)/ Paragraph search values are being displayed in a vertical list. To accomplish this, set the separator to the following value:


This will enforce a single line per value and would look like this:


When using a Labels field type, the separator will be ignored and each value will be its own label tag. When using a Labels field, be aware that whitespaces within a value will split the label into multiple label tags.

Target Jira Field

Target Jira Field defines the Jira custom field to which the value(s) of the selected options are being written to. You can specify those value(s) in Value Field.

No Issue Refresh (advanced option)

If activated, this field will not trigger an issue page refresh after a value is selected or deselected. An issue page refresh is useful if you want any change to be reflected in the target field without a manual page refresh. An issue refresh can affect usability and performance as it will fully reload all fields.

Filter Match (optional)

You can filter the search to only match specific projects, issue types or request types. By selecting Any, you’ll get results that matches any of the selected filters while choosing All means, all of the defined filters must apply for matches in order to be shown.

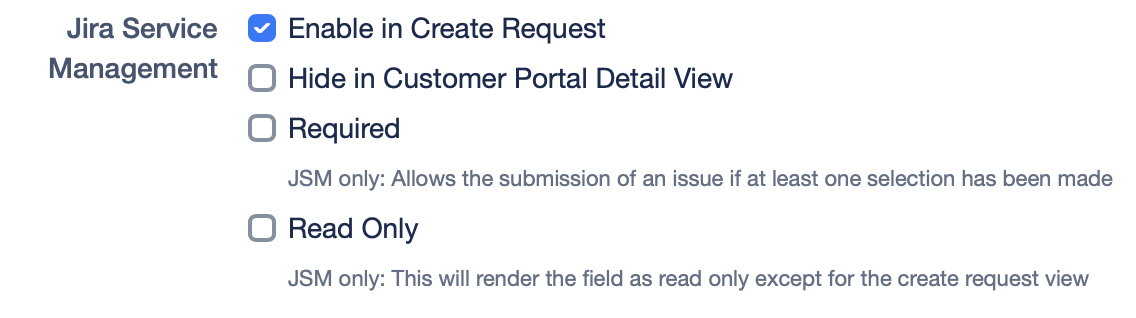

Enable JSM Create Request

Enables this field on the create request screen of the Jira Service Management customer portal.

Combining Fields

A search field can be combined with an Info Panel or a dependant field. Use this option whenever you want the search to output additional search-related informations and/or custom fields.


When you’re using multiple search fields in combination with info panels you might want to put them in a specific order. By default fields are sorted by name (ascending).

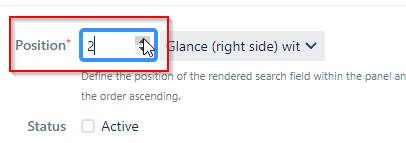

To overrule the default settings for two different search fields, use the Position field for the search you want to appear below the other one by choosing a value higher than 1. The field with the lowest number will appear at the top.

Note: For usability reasons, numbers can also be 0 or lower.
